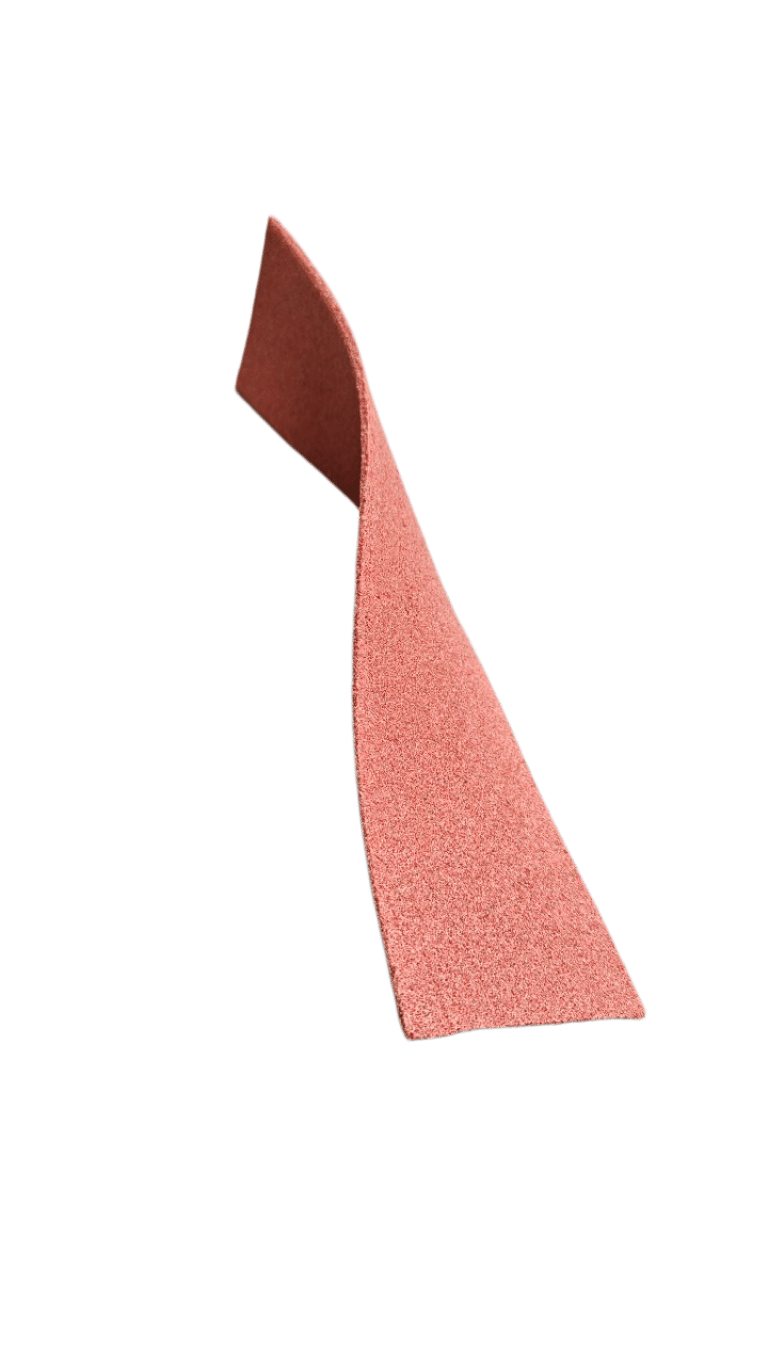

Modular Flexible Tiles
Extremely light, thin, and flexible for universal facade applications.
Key Specifications
Material : Natural color quartz sand combined with inorganic gel materials
Standard Size : 240×60mm
Thickness : 1.5−3.5mm(±0.5mm)
Weight : 3−5kg/m2
Fire Rating : Class A2
Eco-Friendly : Formaldehyde-free
Color : Multiple options available
Application : Indoor and outdoor walls
MOQ : Starts from 100m2
Comparison of Thermal Stress on Exterior Walls Before and After External Wall Insulation

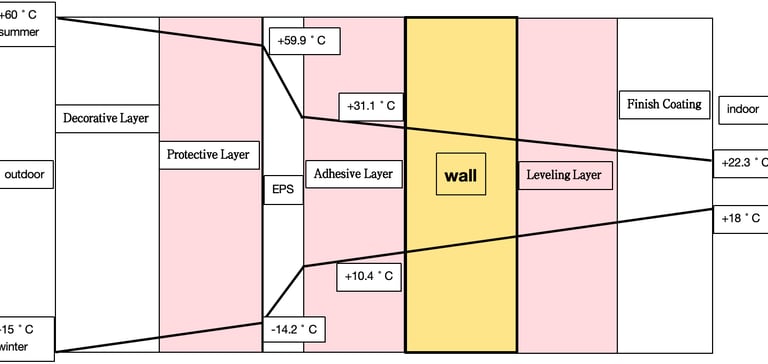

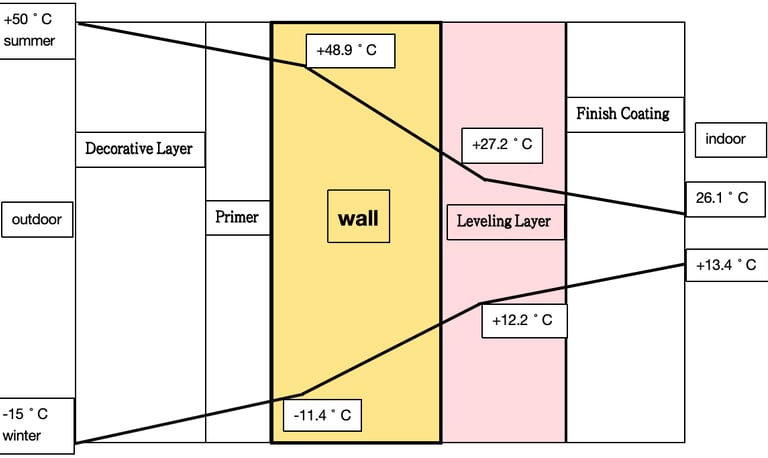

Comparison of Temperature Gradients in a 24cm Brick Wall (Thermal Conductivity 0.5 W/m·K) With and Without External Thermal Insulation Composite Systems (ETICS)
As can be seen from the graph, after applying external wall insulation, the surface temperature of the decorative layer is higher in summer and lower in winter. The insulation decorative layer suffers greater freeze-thaw shock and damage during alternating winters and summers, thereby causing numerous drawbacks and hidden hazards in traditional external wall insulation decorative systems.

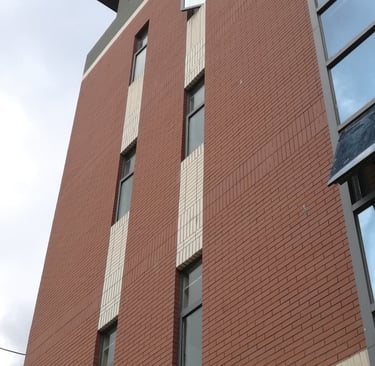

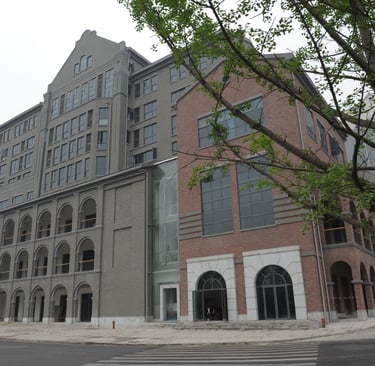

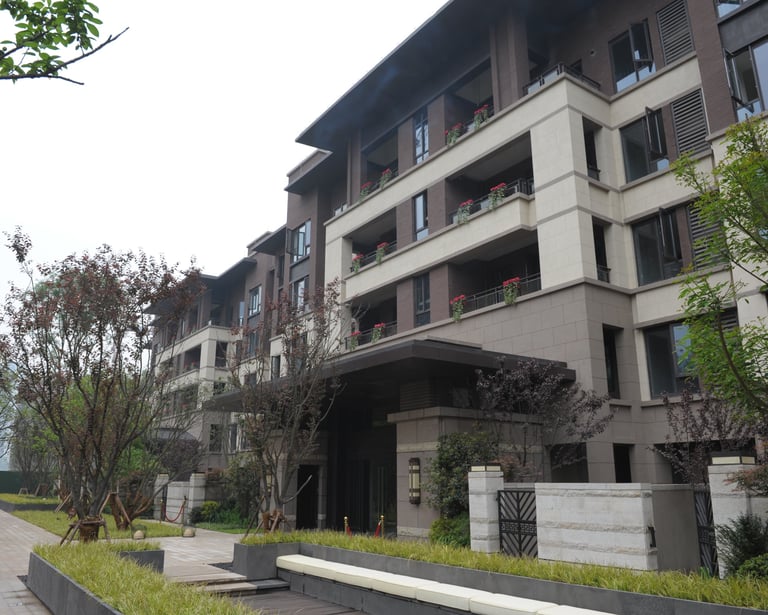

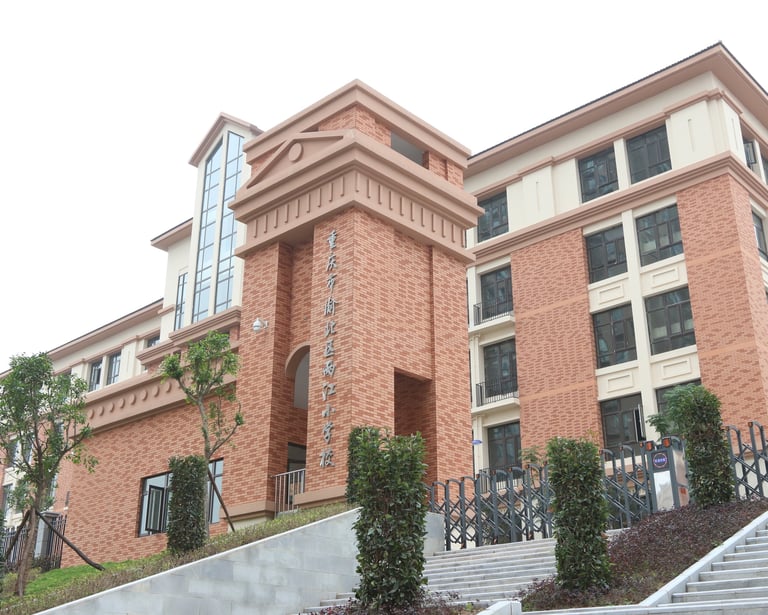

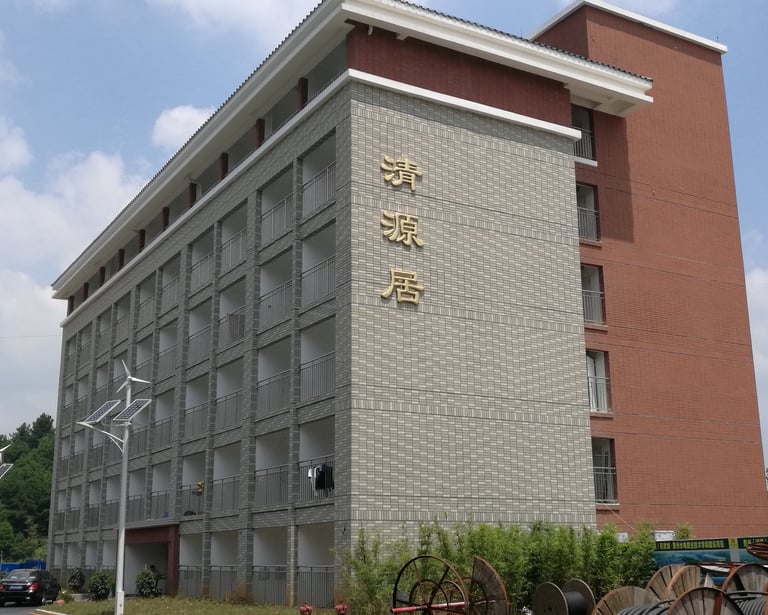

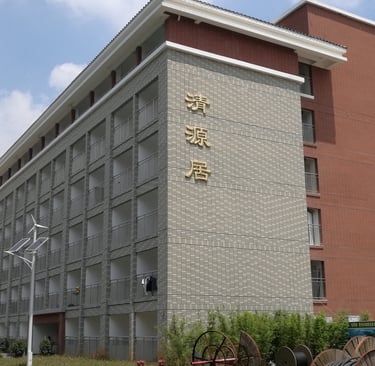

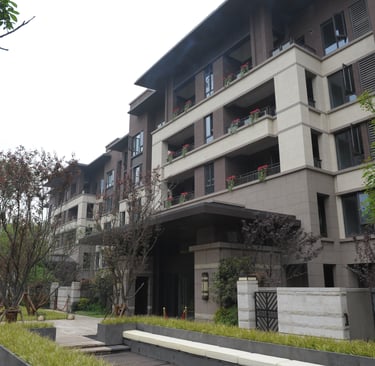

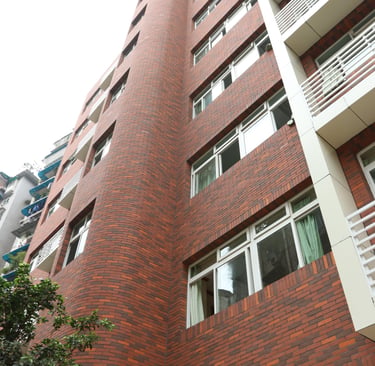

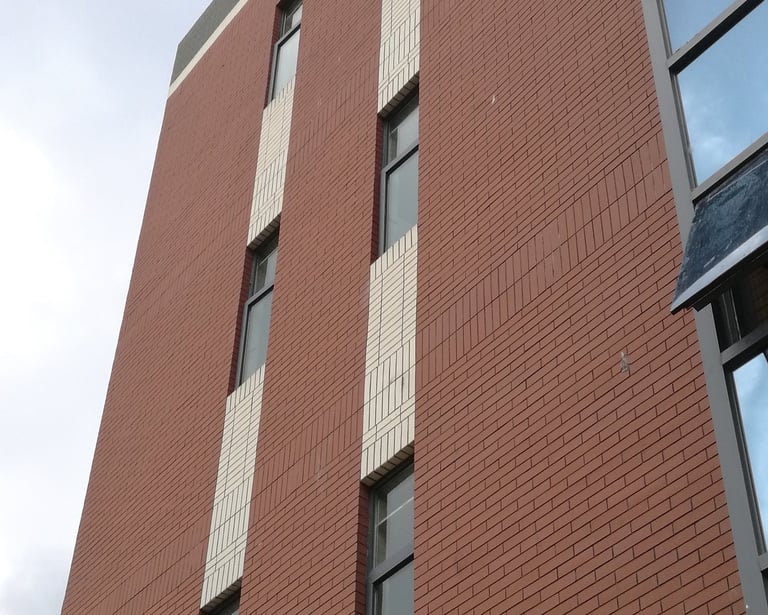

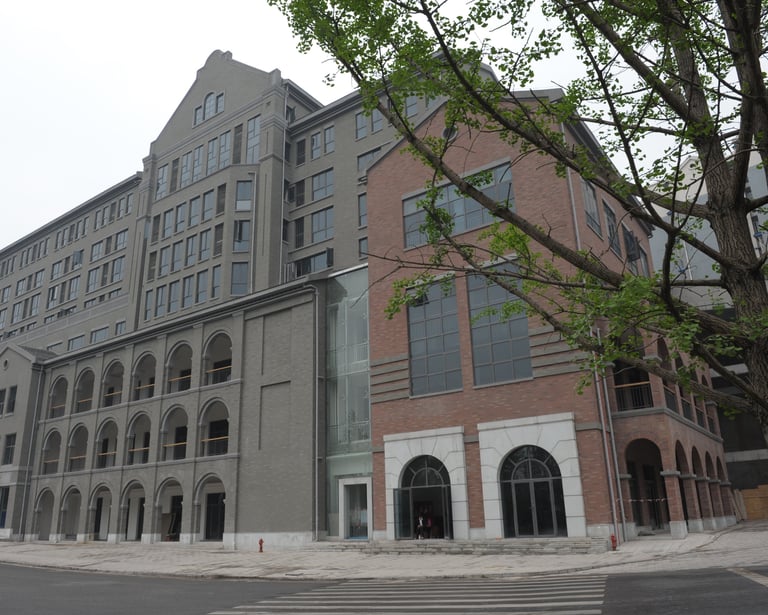

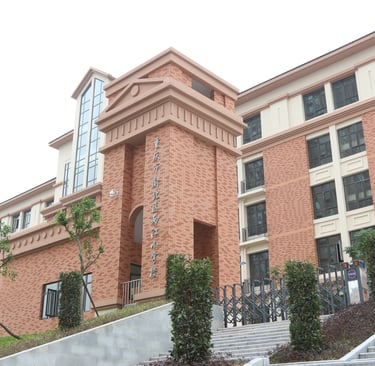

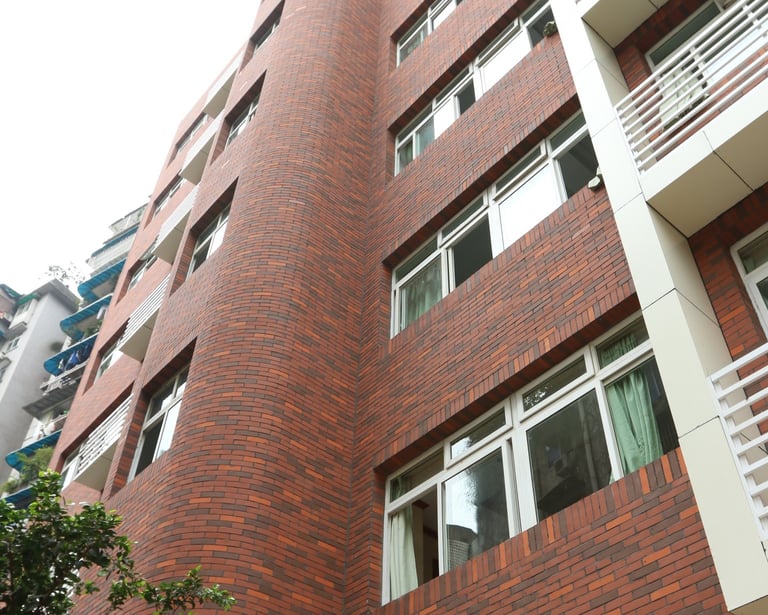

Selected Construction Projects
